1 ENGINE & DRIVE LINE ELEMENTS1
11 ENGINE & TRANSMISSION ASSEMBLY 2

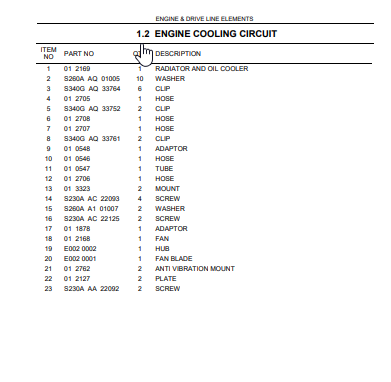

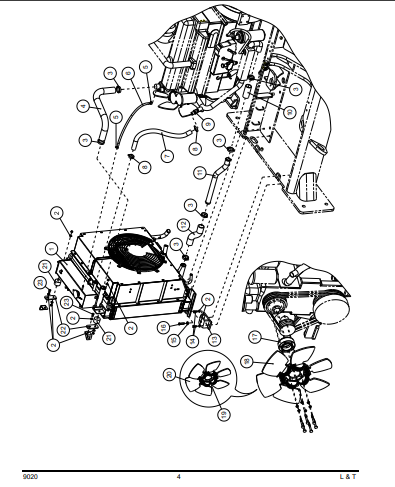

12 ENGINE COOLING CIRCUIT 4
13 TRANSMISSION COOLING CIRCUIT6
14 AIR INTAKE & EXHAUST CIRCUIT8
15 AIR INTAKE KIT10
16 EXHAUST KIT12
17 ENGINE FUEL CIRCUIT14
18 FUEL TANK 16
19 ENGINE & TRANSMISSION INSTALLATION 18
110 ENGINE & TRANSMISSION CONTROL 20
111 PROPELLER SHAFT22
112 FRONT PROPELLER SHAFT 24
113 REAR PROPELLER SHAFT26
114 CENTRAL PROPELLER SHAFT28
115 WHEEL 30
116 AXLES 32
117 FRONT AXLE CENTRAL HOUSING 34
118 FRONT AXLE DIFFERENTIAL36
119 FRONT AXLE HUB REDUCTION38
120 FRONT AXLE BRAKES40
121 REAR AXLE CENTRAL HOUSING42
122 REAR AXLE DIFFERENTIAL 44
123 REAR AXLE HUB REDUCTION 46
124 REAR AXLE BRAKES 48
125 ENGINE HOOD ? MAIN COVER 50
126 ENGINE HOOD RIGHT SIDE COVERS 52
127 ENGINE HOOD LEFT SIDE COVERS54
128 EXHAUST COVER 56
129 ACCELERATOR CABLE AND STOP CABLE 58
130 PARKING BRAKE CABLE60
2 HYDRAULIC CIRCUITS63
21 SUCTION CIRCUIT 64
22 PUMP DELIVERY CIRCUIT 66
23 LIFT CIRCUIT 68
24 TILT CIRCUIT 70
25 STEERING CIRCUIT 72
26 PILOT LINE CIRCUIT 74
27 BRAKE CIRCUIT 76
28 RETURN CIRCUIT 78
29 TANK CIRCUIT80

Contents
3 HYDRAULICS COMPONENTS 83
31 HYDRAULIC ACCESSORIES - REAR  84
32 HYDRAULIC ACCESSORIES - FRONT 86
33 HYDRAULIC OIL TANK & ACCESSORIES 88
34 HYDRAULIC OIL FILTER  90
35 PUMP INSTALLATION 92
36 MAIN PUMP 94
37 STEERING UNIT  96
38 TRANSMISSION OIL FILTER MOUNTING 98
39 STEERING CYLINDER  100
310 LIFT CYLINDER - LH 102
311 LIFT CYLINDER - RH  104
312 TILT CYLINDER  106
313 FEEDING UNIT 108
314 JOYSTICK  110
315 SPOOL VALVE 112
316 PRIORITY VALVE  114
317 BRAKE VALVE  116
4 ELECTRICAL SYSTEM 119
41 REAR FRAME ELECTRICAL  120
42 BATTERY  122
43 FRONT FRAME ELECTRICAL 124
44 CABIN ELECTRICAL 126
45 DASHBOARD 128
46 ARM AND BLADE 130
5 STRUCTURES 133
51 ARTICULATION JOINT  134
52 REAR FRAME AND TRUNNION 136
53 REAR FRAME ACCESSORIES  138
54 FRONT FRAME AND LIFT ARM  140
55 FENDER & SERVICE DOOR  142
56 LINK 144
57 BUCKET WITH WELD ON TOOTH ? 19 CUM  146
58 BUCKET WITH BOLT ON TOOTH ? 19 CUM  148
59 BUCKET WITH BOLT ON CUTTING EDGE ? 19 CUM 150
510 BUCKET WITH WELD ON TOOTH ? 17 CUM  152
511 BUCKET WITH BOLT ON TOOTH ? 17 CUM  154
512 BUCKET WITH BOLT ON CUTTING EDGE ? 17 CUM 156
513 BUCKET WITH WELD ON TOOTH ? 3 CUM  158
514 BUCKET WITH BOLT ON TOOTH ? 3 CUM  160
515 BUCKET WITH BOLT ON CUTTING EDGE ? 3 CUM 162
516 COUNTER WEIGHT 164
6 CABIN 167
61 FLOOR PLATE 168
62 CABIN ACCESSORIES - I 170
63 CABIN ACCESSORIES - II 172
64 CABIN & PLATFORM 174
7 LABELS 177
71 HAZARD LABELS178
72 OPERATOR LABELS 180
73 OTHER LABELS182
8 TRANSMISSION 185
81 FLANGE186
82 FLEX DISK, CONVERTER DRIVE 188
83 TORQUE CONVERTER 190
84 TORQUE CONVERTER HOUSING 192
85 TURBINE FRIVE GEAR AND FREEWHEEL UNIT194
86 TRANSMISSION MAIN HOUSING196
87 REVERSE CLUTCH AND PLANETARY 198
88 FORWARD CLUTCH AND PLANETARY200
89 HIGH-RANGE CLUTCH AND TRANSFER DRIVE GEAR202
810 TRANSMISSION REAR COVER204
811 TRANSMISSION OUTPUT SHAFT AND TRANSFER DRIVEN GEAR206
812 CHARGING OIL PUMP208
813 CONTROL VALVE ELECTRICAL SHIFTER 210
814 PARKING BRAKE212
815 TRANSMISSION OIL FILTER

Idioma Inglês

Páginas 235
